Inbox

The inbox is where traces are reviewed before upload. In 0.3 the public review surface is web, tui, and the flat CLI commands like list, show, add, reject, reset, redact, and discard.

Web Inbox

opentraces web
opentraces web --port 6060 --no-open

web starts the local Flask server for the current project's inbox and opens the React viewer at http://127.0.0.1:6000 (override with --port, pass --no-open to skip the browser launch). It is the richest review surface, with side-by-side trace inspection and a built-in push flow.

Review tab

The review tab shows the Inbox / Staged / Pushed columns on the left and the selected trace on the right. Switch between the conversation and blame tabs at the top of the preview to flip between the flattened chat stream and the commit-blame view for that trace.

• j / k — move the inbox selection up / down
• space — add the selected inbox trace to Staged, or remove it from Staged
• r — refresh the inbox from the session files on disk
• ? — toggle the review help overlay (also shows the row-legend)
• q — quit the local server (browser tab closes automatically)

Per-row actions are visible on hover:

• + — stage an inbox trace
• ✕ — reject an inbox trace (kept local only)
• − — unstage a staged trace back to the inbox
• i — open the security-pipeline modal for that trace

The Push button at the top of the Staged column opens the push modal. You can push directly, or run an optional Tier-2 LLM review first (requires opentraces setup llm-review). The header also exposes a global i (project-wide security info) and ? (help).

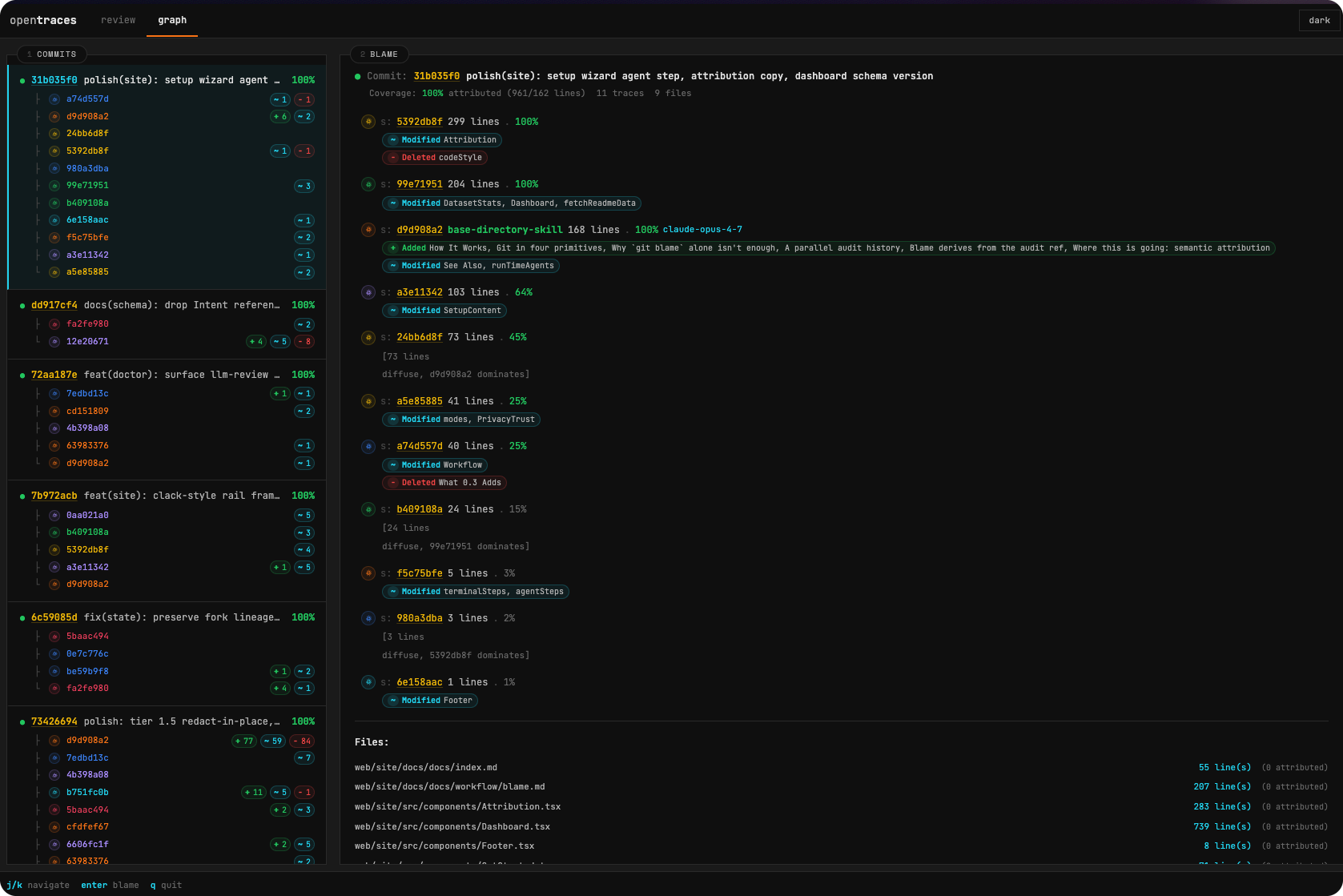

Graph tab

The graph tab is the blame surface. It lists recent commits on the left; selecting one shows every trace that contributed lines to that commit, plus a per-file breakdown with attributed line counts. This is how you answer "which trace produced this code?" at commit-granularity.

• j / k — move the commit selection
• enter — jump to the blamed trace in the review tab
• q — quit

Terminal Inbox

opentraces tui
opentraces tui --fullscreen
opentraces tui --limit 0

The TUI is the shell-native inbox. It loads the same trace set and the same stage model (Inbox / Staged / Pushed) as the web viewer, and exposes trace detail, security status, staging, rejection, discard, and push without leaving the terminal.

The layout is two columns — Info / Inbox / Staged / Pushed on the left, the selected trace's preview on the right. Numeric keys focus a pane directly.

Navigation

• 1 / 2 / 3 / 4 — focus Info / Inbox / Staged / Pushed
• 5 — focus the trace preview
• tab — cycle focus across the panes
• j / k (or ↑ / ↓) — move selection
• enter — inspect the selected trace (focus the preview)
• g / G — jump to top / bottom of the preview
• [ / ] — page the preview up / down from any pane
• a — toggle conversation view vs. full view

Actions

• space — add inbox→staged, or remove staged→inbox
• p — open the push modal (LLM review or push now)
• r — refresh (re-capture and reload)
• d — discard the selected trace (deferred; actually deleted on quit)
• u — undo the last reject / discard / stage move
• i — open the security-pipeline modal for the selected trace
• ? — toggle the full help overlay
• q — quit (flushes pending discards)

Trace row legend

• · — normal trace
• ◐ (dim cyan) — recently touched in roughly the last 2 hours
• ● (yellow) — security findings still need review
• ● (red) — blocked trace
• ↑N (dim cyan) — session generation; ↑1 is the first captured trace for that session, ↑2+ means the same session kept going and this newer trace replaces an older one. Refresh pulls the latest; review and push the latest generation.

CLI

opentraces list
opentraces list --stage inbox
opentraces list --by-commit
opentraces show <trace-id>
opentraces show <trace-id> --verbose
opentraces show <trace-id> --markdown
opentraces add <trace-id>
opentraces add --all
opentraces reject <trace-id>
opentraces reset <trace-id>
opentraces redact <trace-id> --step 3
opentraces discard <trace-id> --yes

Use the CLI when you want scriptable review or a precise edit loop:

• list filters the local inbox by stage, model, agent, remote, or commit grouping
• show prints the full trace detail, with --verbose to remove the default 500 character truncation
• show --markdown wraps the trace for safe handoff to another LLM
• add stages upload-eligible traces
• reject keeps a trace local only
• reset moves a trace back to Inbox
• redact rewrites the stored trace JSON in place
• discard permanently deletes the local trace

Stage Vocabulary

Internally the state machine tracks additional states. The public CLI and UIs collapse those down to the visible stages above.

What To Look For

• Secrets that escaped redaction
• Internal hostnames and collaboration URLs
• Customer names, paths, or identifiers
• Traces that are too short or too trivial
• Tool outputs that should be redacted before sharing

Inbox Flow

opentraces add <trace-id>
opentraces add --all
opentraces push

If you refreshed and a session produced a newer generation, stage and push the latest generation for that session.

If you want a faster automatic path, set the project to auto-approve clean traces:

opentraces setup review-policy --auto

That still does not push automatically. Upload remains explicit.
